How It Works

The 7-Stage Pipeline

Every generation runs through all 7 stages in sequence. The pipeline is built on LangChain + LangGraph with Claude Sonnet as the primary LLM.

01

Intent Agent

English → JSON spec

02

RAG Layer

Pattern retrieval

03

Writer Agent

Daml generation

04

Compile Agent

dpm build

05

Fix Agent

Auto-repair

06

Audit Layer

5-gate scan

07

Deploy Agent

Canton Ledger API

🔷

What you see in the UI

The web interface shows a 5-step progress indicator (Analyzing → Generating → Compiling → Auditing → Deploying). Steps 4 and 5 in the UI combine the internal Fix Agent + Compile Agent retry loop into a single "Compiling" stage.

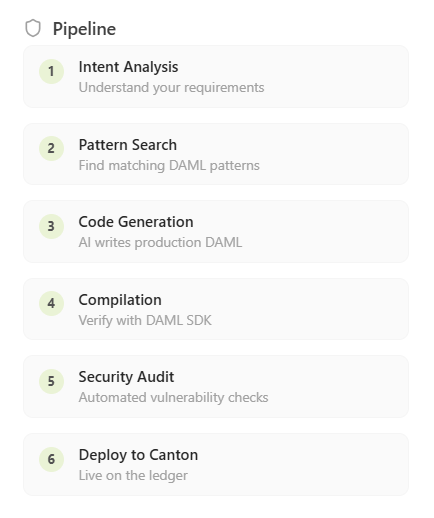

Pipeline sidebar · Shown on the contract generator page alongside your prompt

Stage-by-stage breakdown

Stage	Name	Description
01	Intent Agent	Parses plain English prompt into structured JSON contract specification (parties, fields, choices, constraints)
02	RAG Layer	Retrieves relevant Daml patterns from the institutional pattern library (ChromaDB vector store)
03	Writer Agent	Generates complete, idiomatic Daml module based on intent spec and retrieved patterns
04	Compile Agent	Runs the real `dpm build` command against the generated Daml source
05	Fix Agent	Handles compilation errors — recognises 11 error types, retries up to 3×
06	Audit Layer	Runs 5-gate pre-deployment security scan on every generated contract
07	Deploy Agent	Uploads compiled DAR to Canton Ledger API, returns Contract ID and CantonScan link

Fix Agent — error types handled

Error type	Example	Fix approach
Missing signatory	`Template has no signatories`	Adds signatory from first party in spec
Type mismatch	`Expected Party, got Text`	Corrects type annotation
Unbound variable	`Variable 'amount' not in scope`	Adds field to template record
Missing import	`Unknown module DA.Date`	Adds missing import statement
Choice return type	`Expected ContractId, got ()`	Wraps return in correct type
Duplicate field	`Field 'amount' defined twice`	Removes duplicate, merges definitions
Missing module header	`Expected module declaration`	Adds correct `module Main where`
Invalid party expression	`Party literal not allowed`	Converts to parameterised party field
Non-consumable archive	`archive on non-consumable choice`	Adjusts choice kind and return type
Missing do block	`Expected 'do' keyword`	Wraps body in do notation
SDK version mismatch	`daml-sdk-version mismatch`	Updates `daml.yaml` to SDK 3.4

How It Works

RAG & Pattern Library

The RAG (Retrieval-Augmented Generation) layer is what makes Ginie's Daml output idiomatic. Instead of generating from scratch, the Writer Agent retrieves the closest matching patterns from a curated library of validated institutional Daml contracts.

What's in the pattern library

digital-asset/daml — official Daml examples and stdlib patterns
digital-asset/daml-finance — financial instrument templates (bond, repo, DvP, cash)
digital-asset/splice — Splice protocol patterns and Canton utilities
digital-asset/cn-quickstart — Canton application scaffolding patterns
digital-asset/ex-models — extended Daml model examples
Community-contributed patterns via Canton Skills (MIT, Apache 2.0 licensed)

Canton Skills

Canton Skills is a separately published npm package (npx canton-skills install) that provides a structured knowledge base for AI coding agents. It covers Canton SDK 3.4, Splice 0.5.0, DPM, CIP-0103, CIP-0056, PQS, TypeScript frontend patterns, and deprecated API guardrails. In Ginie, Canton Skills functions as the primary knowledge layer for both the Writer Agent and Fix Agent.

✅

Using Canton Skills independently

Canton Skills works standalone. If you use Claude Code, Codex, or Cursor to write Daml, run npx canton-skills install to give your AI assistant the same Canton knowledge base Ginie uses internally.

How It Works

Audit Layer

Every Ginie-generated contract passes a 5-gate pre-deployment security scan before any DAR is uploaded to the Canton ledger. A CRITICAL finding blocks deployment entirely and is returned with a specific, line-level explanation.

💡

The audit layer is what separates AI-generated Daml from manually-written Daml in terms of safety. AI models have specific failure modes — particularly around Canton's party and authorization model. The gates are designed around these known failure modes.

Gate 1

Signatory presence check

Every template must have at least one signatory. A template with zero signatories cannot create contracts on Canton — deployment would succeed but the contract would be unusable.

CRITICAL: Template Bond has no signatories — contracts cannot be created on this template.

Gate 2

Controller–signatory validation

Choice controllers must appear in the template's signatories. A controller not in signatories can exercise a choice without the asset owner's authorization — a critical vulnerability.

CRITICAL: Choice Iou_Transfer: controller Alice is not in signatories. Deployment blocked.

Gate 3

Unguarded choice analysis

Choices without ensure clauses that could be exercised in invalid contract states. These generate warnings, not blocks — the contract deploys but the finding is returned.

WARNING: Choice Settle has no ensure clause — may execute on contracts in an invalid settlement state.

Gate 4

Known anti-pattern matching

Checks for hardcoded party strings, missing divulgence controls, non-atomic workflows, and other known Daml anti-patterns. Generates warnings on findings.

WARNING: Hardcoded party string "Alice" found in template — use a parameter instead for reusability.

Gate 5

SCU upgrade compatibility

Validates the contract follows Smart Contract Upgrade rules — additive-only field structure, correct @daml.upgrade annotation, valid version string. Every export includes UPGRADE_NOTES.md.

UPGRADE_FAIL: Field 'maturityDate' removed from Bond template — non-additive change blocks SCU compatibility.

Reading the security scores

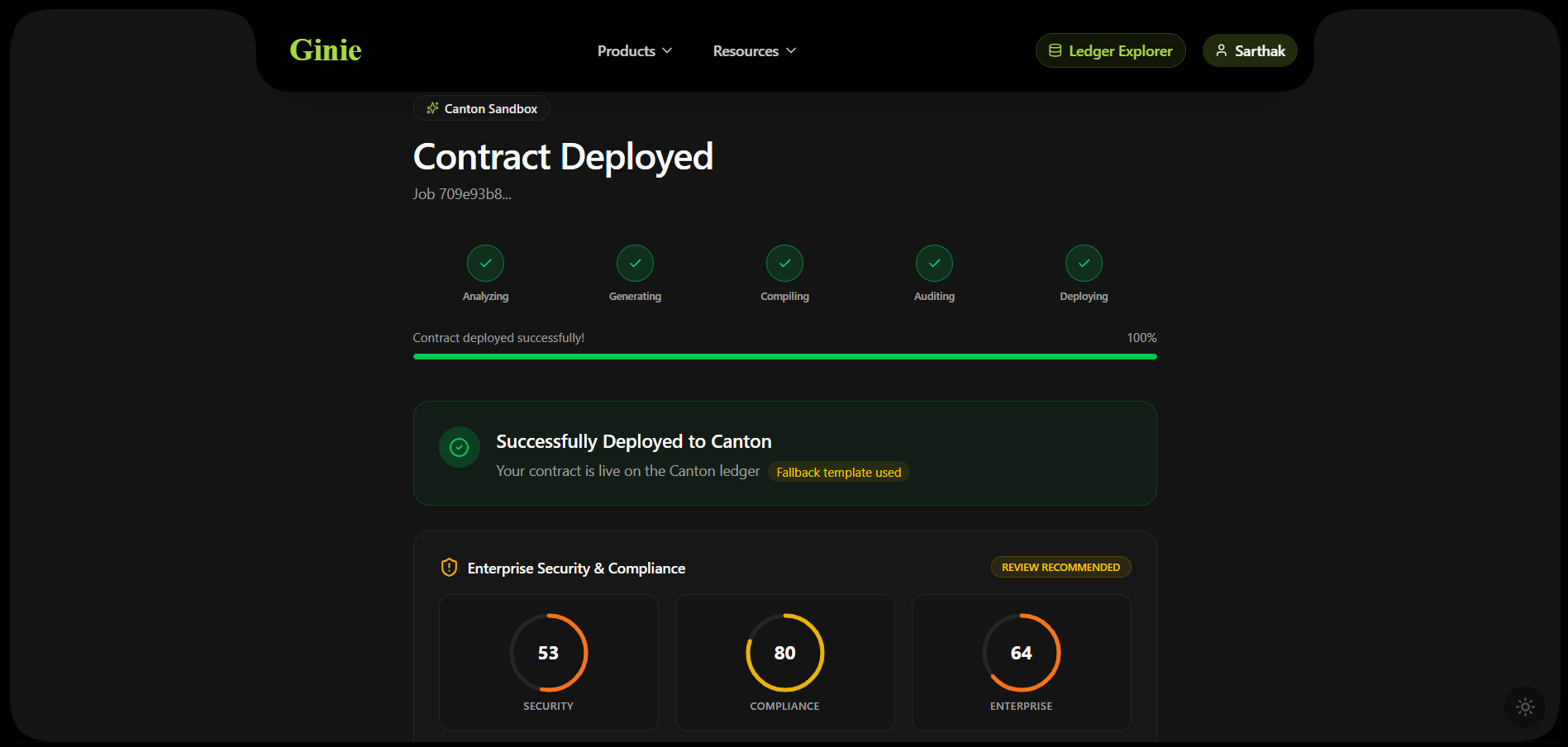

After successful deployment, Ginie returns three Enterprise Security & Compliance scores — Security, Compliance, and Enterprise readiness — generated from the audit findings and shown on the deployed contract page.

Post-deployment scores · Security · Compliance · Enterprise · Review Recommended when scores are below threshold

Score	What it measures	Block threshold
Security	Gate 1 + 2 findings weighted by severity	CRITICAL finding = blocked
Compliance	Gate 3 + 4 warnings and anti-pattern density	High warning count = Review Recommended
Enterprise	SCU compatibility + documentation quality	Upgrade-incompatible = blocked

How It Works

SCU Compatibility

Smart Contract Upgrade (SCU) is Canton's on-chain contract upgrade mechanism. Every Ginie-generated contract is SCU-compatible from the first deployment — it can be upgraded on-chain without downtime or manual migration of active contracts.

What Ginie enforces by default

All new fields added to templates are Optional — new fields cannot break existing contracts
No field removals or renames — additive-only evolution enforced by Gate 5
@daml.upgrade annotation structure applied to upgrading modules
daml.yaml version string uses proper semver format — not hardcoded 0.0.1
Every export bundle includes UPGRADE_NOTES.md documenting the upgrade path

The SCU Upgrade Agent (M2)

When you need to modify an already-deployed contract, the SCU Upgrade Agent handles the full upgrade lifecycle — generating the new version with upgradeFrom annotation, validating additive-only changes, and bumping the daml.yaml version.

python

# M2+ — Upgrade an existing deployed contract
result = client.upgrade(
    source_file="./Bond.daml",
    current_version="0.0.1",
    modification="add an optional maturityExtension field of type Optional Date"
)
# result.new_source    — upgraded .daml with upgradeFrom annotation
# result.daml_yaml     — bumped to version 0.0.2
# result.upgrade_notes — UPGRADE_NOTES.md for active contract migration

🔷

CIP-0103 compliance

Ginie's upgrade approach follows Canton Improvement Proposal 0103 — the formal specification for on-chain Daml contract upgrades. The UPGRADE_NOTES.md generated in every export explains any manual migration steps required for active contract instances.
